CAD Project
Apartment building

LOCATION

Prague

Czech Republic

Time spent

1 Day on site

6 Dossier processing days

products

Pointcloud,  360° Photo Viewer, CAD documentation

accuracy

2mm Pointcloud

LOD2 CAD Documentation

CAD Projekt: Vršovice

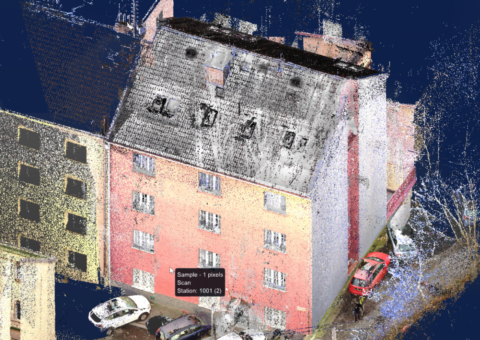

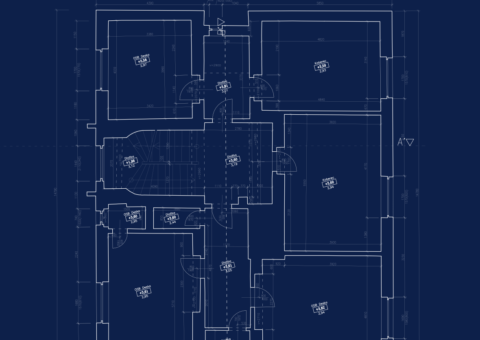

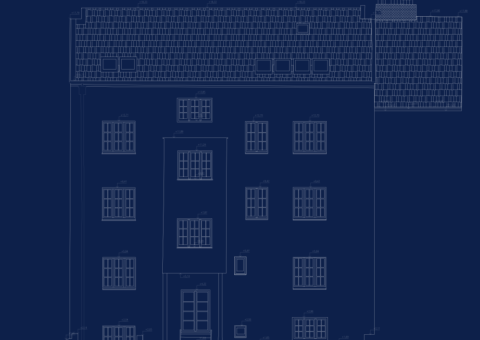

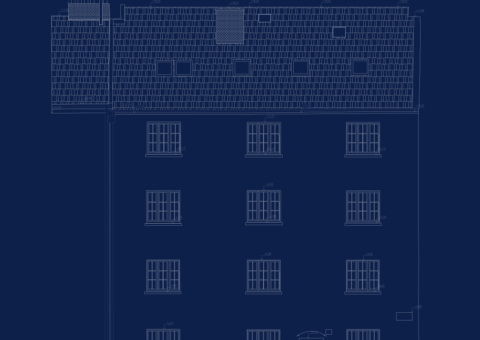

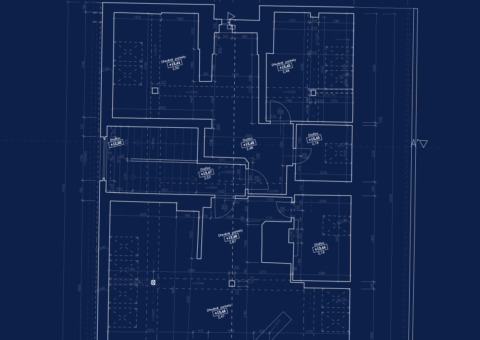

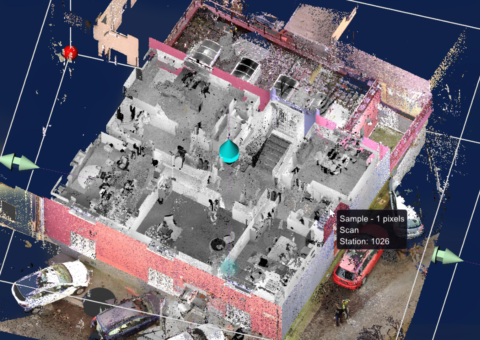

The apartment building was surveyed during full operation, and in a single day. The survey was performed using ground and aerial photogrammetry in combination with 3D laser scanning and classic geodetic methods. This made it possible to create a highly accurate 3D model in the form of a point cloud, which was used to process complete As-Built CAD documentation containing sectional views, floor plans and views of individual facades. The documentation was prepared in LOD2 at the client’s request and served for the building’s complete reconstruction.
