CAD Project
Safarikova 9

lOCATION

Prague

Czech Republic



TIME SPENT

1 Day on site

15 Dossier processing days

PRODUCTS

Pointcloud,  360° Photo Viewer, CAD Documentation

ACCURACY

2mm Pointcloud

20mm CAD Documentation

CAD Project: Safarikova 9

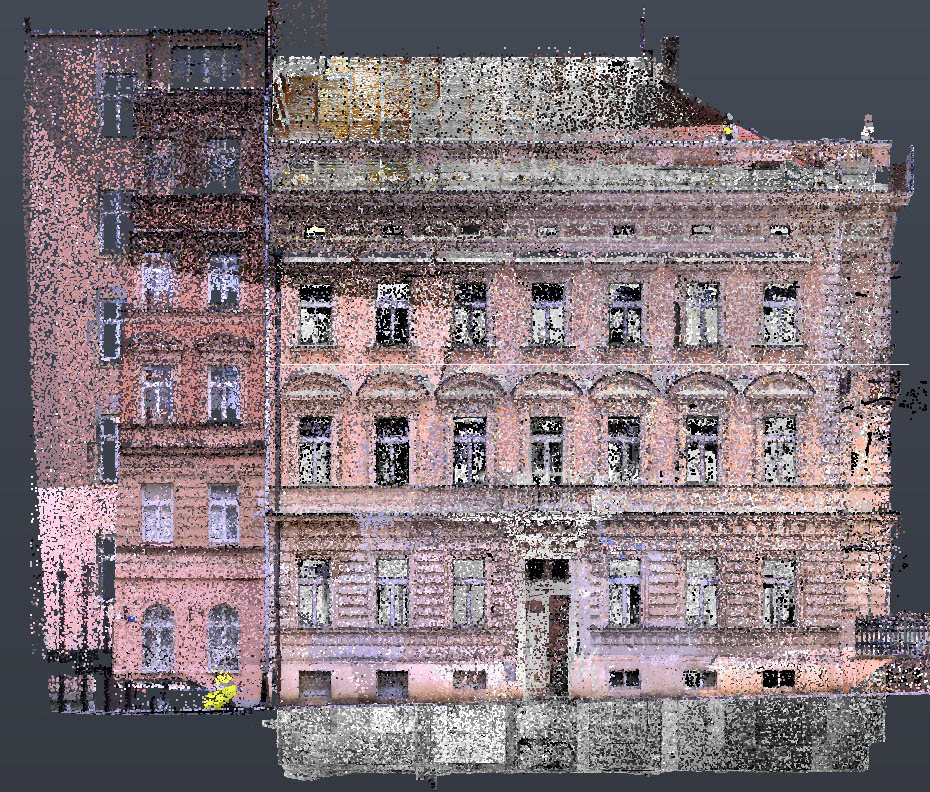

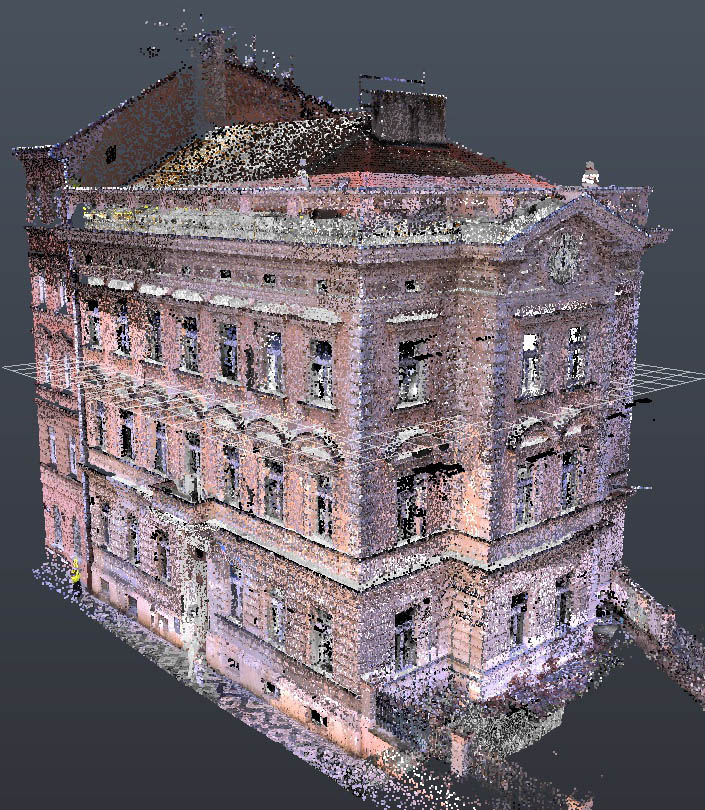

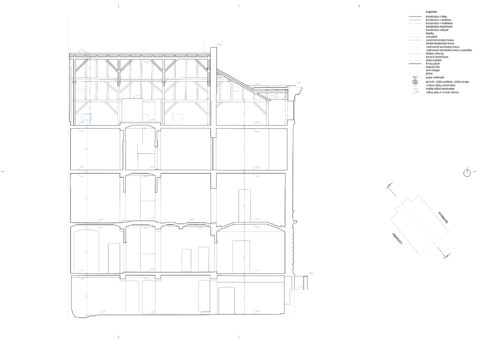

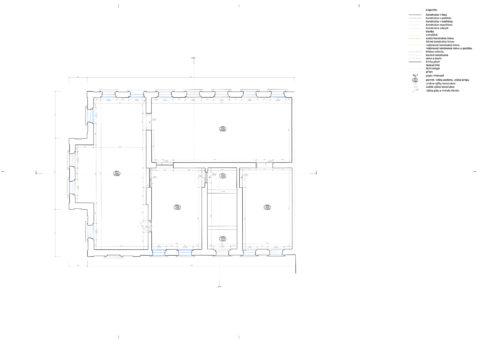

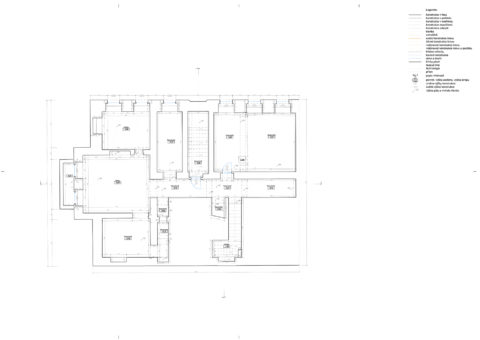

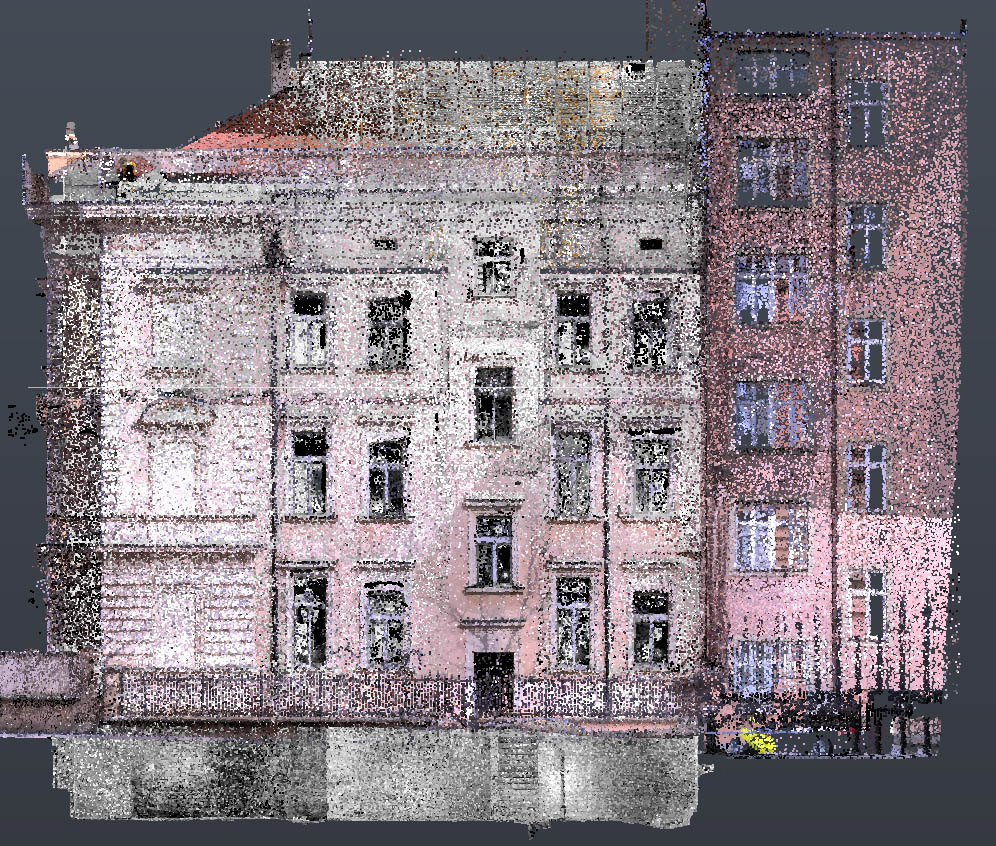

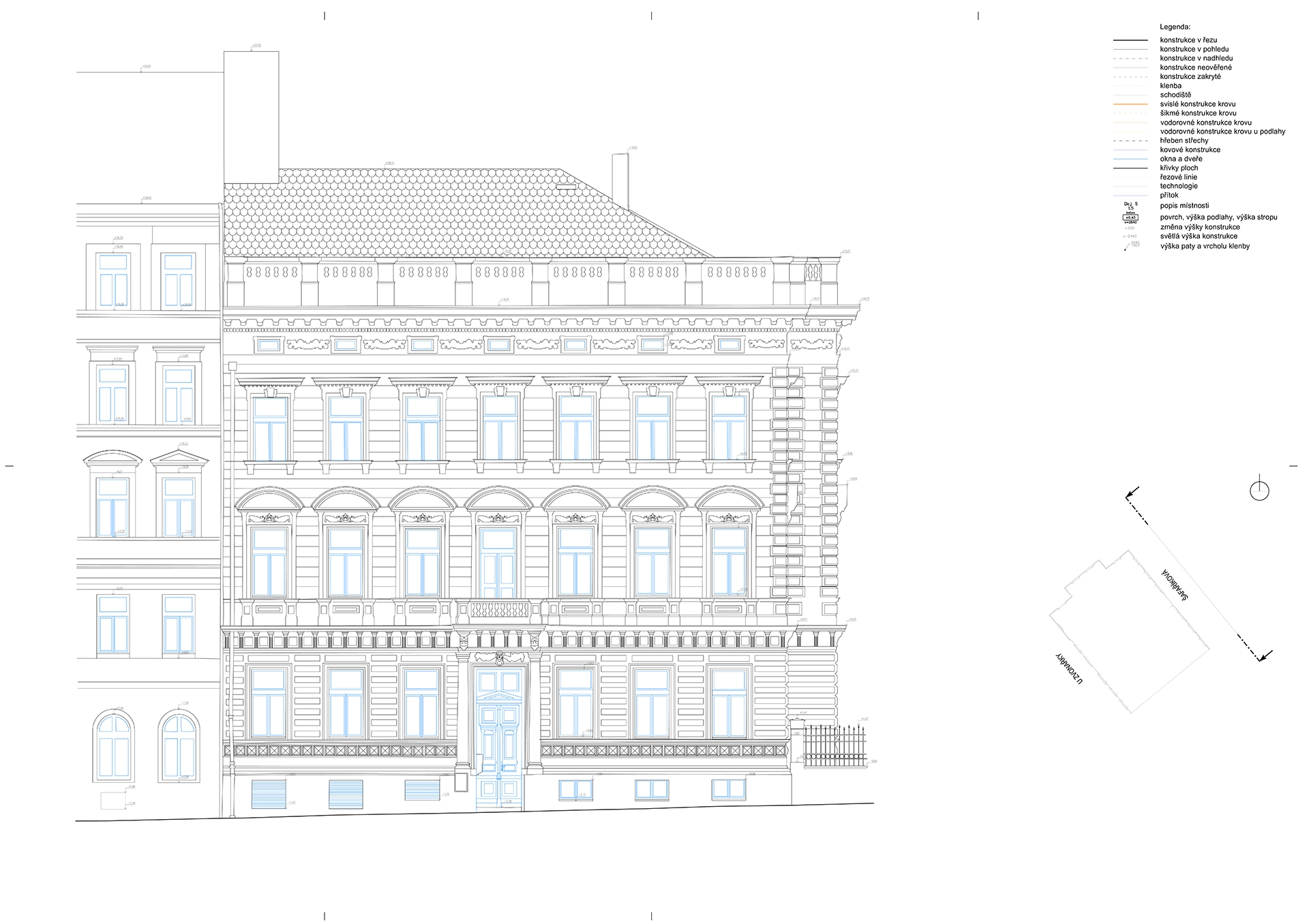

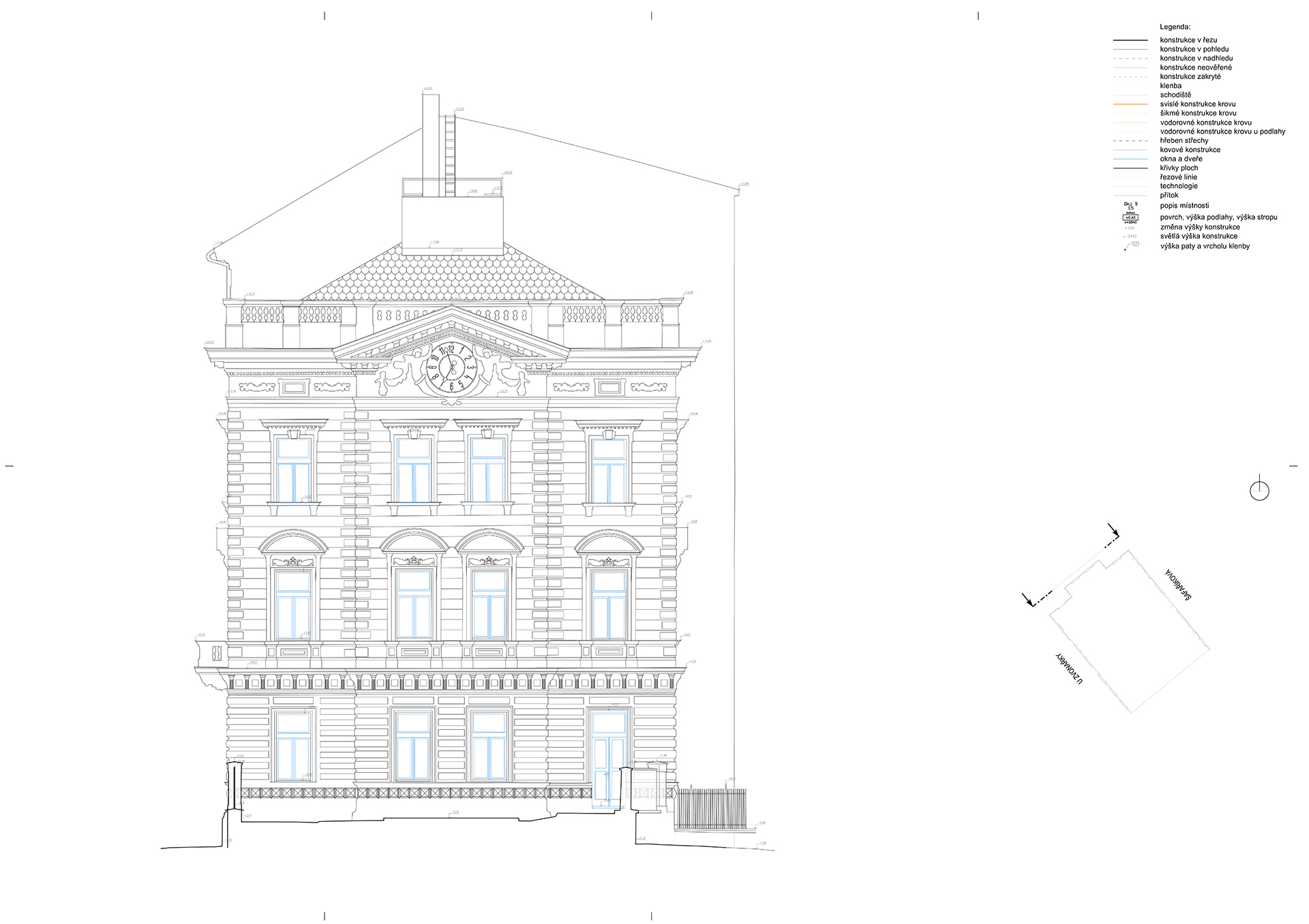

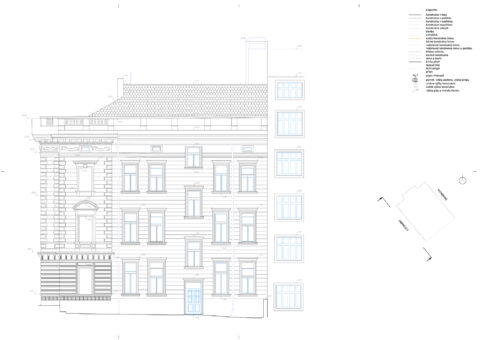

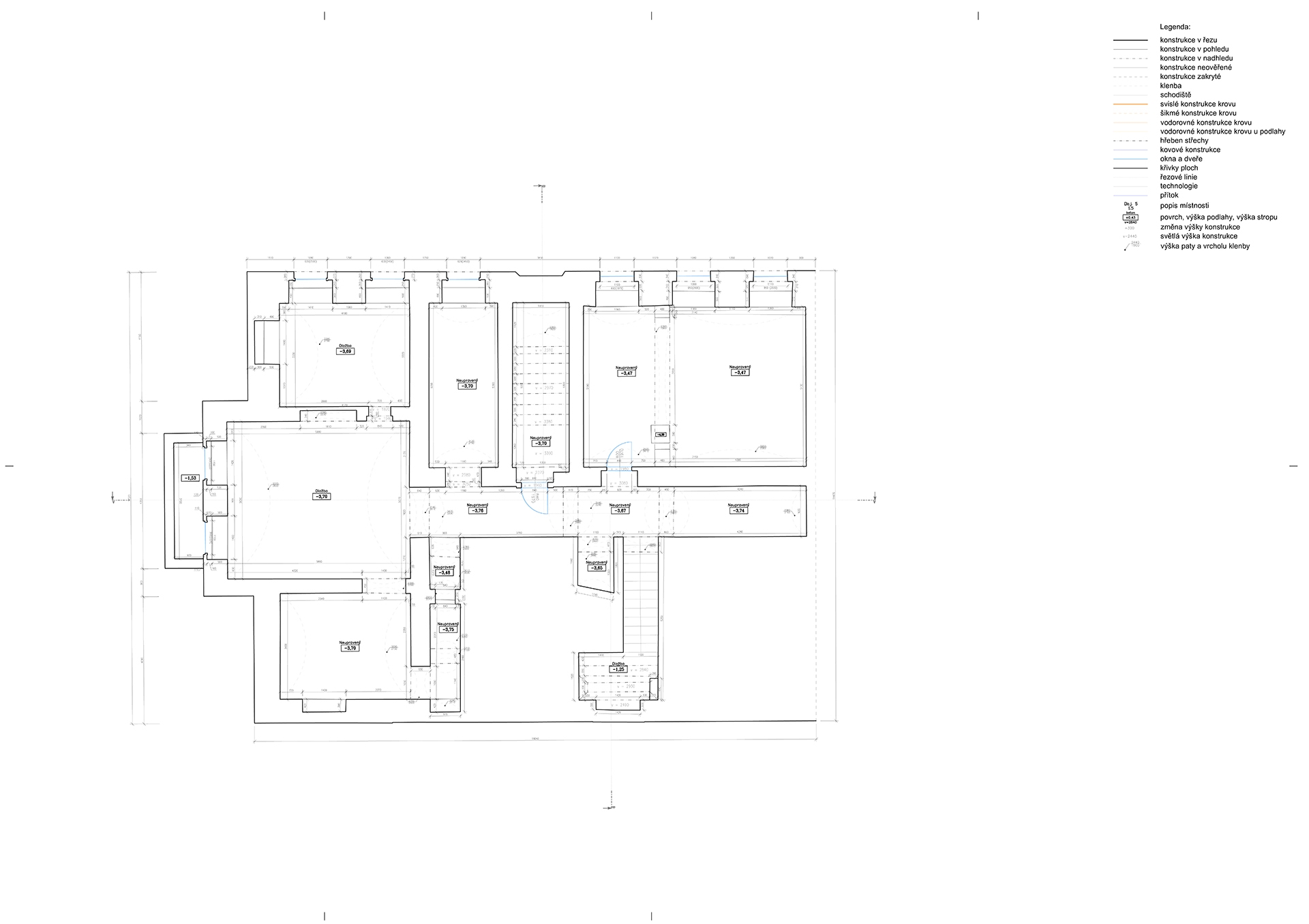

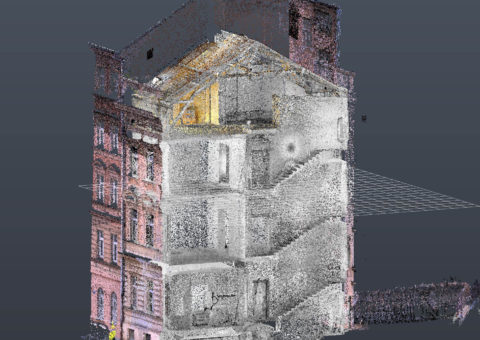

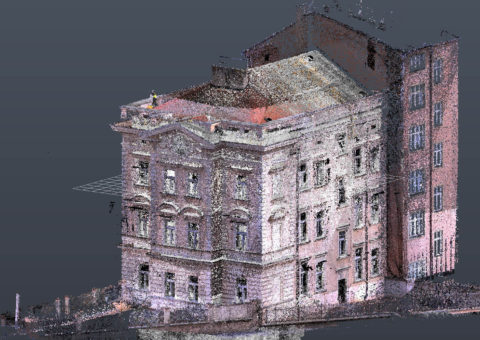

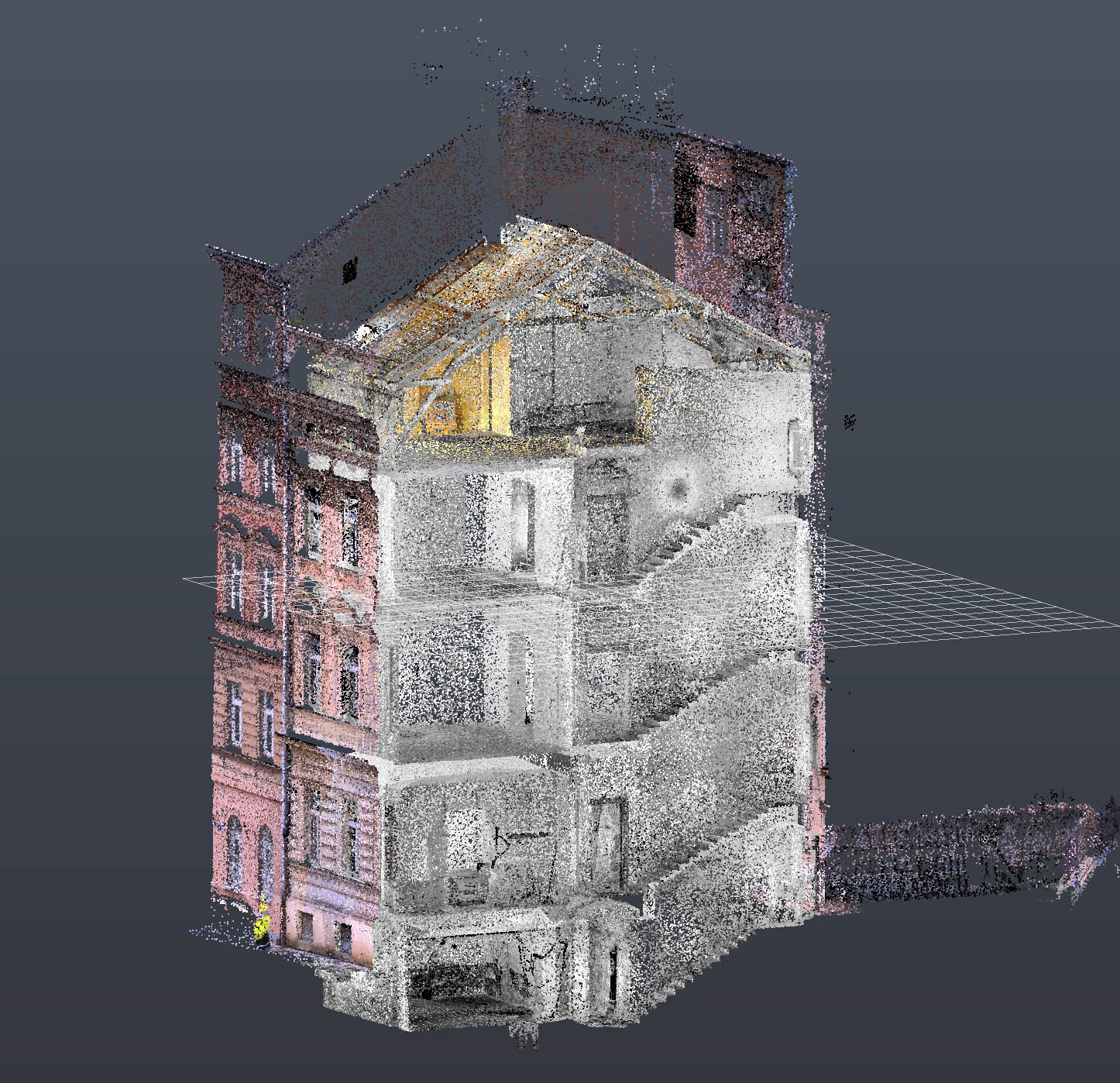

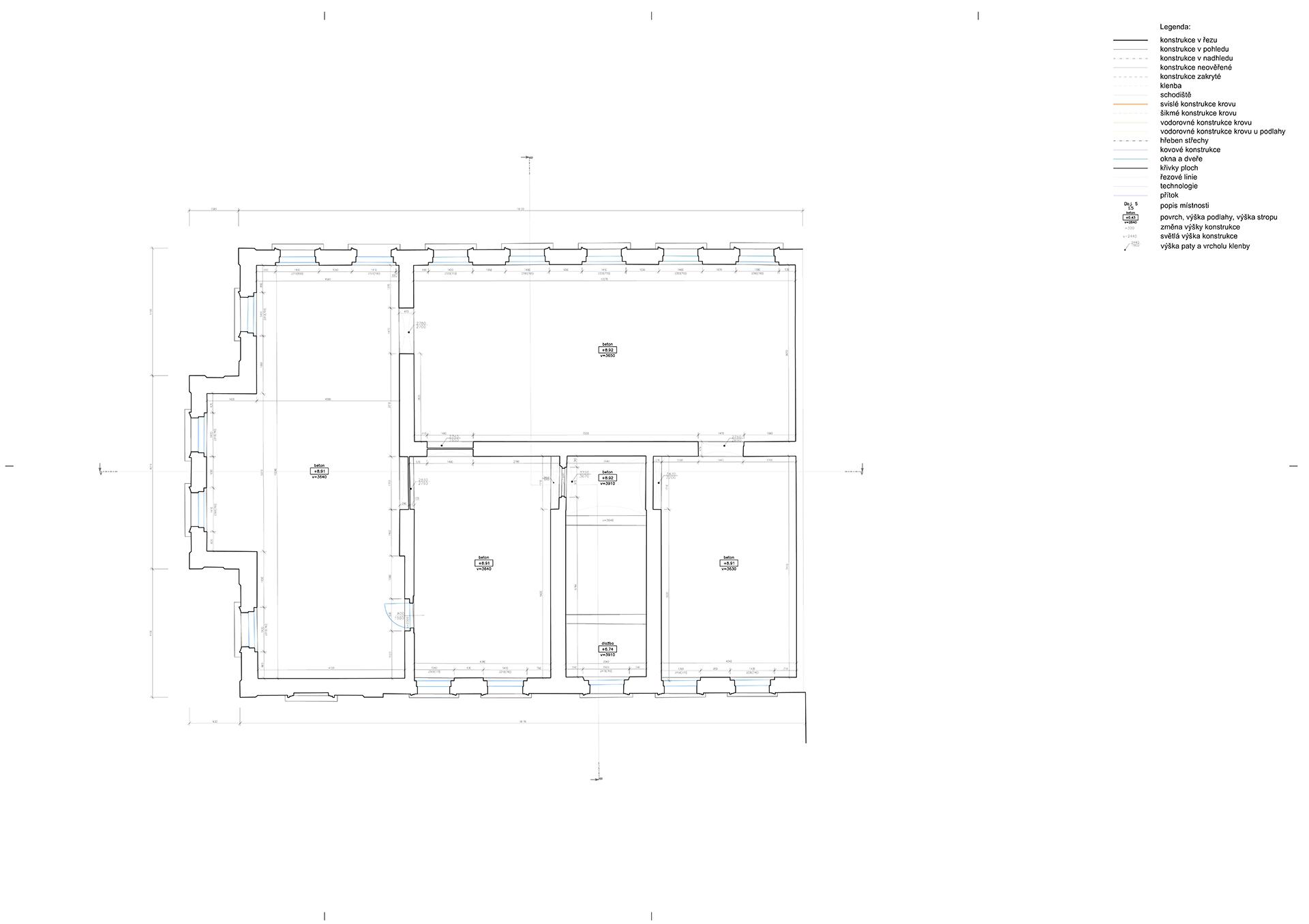

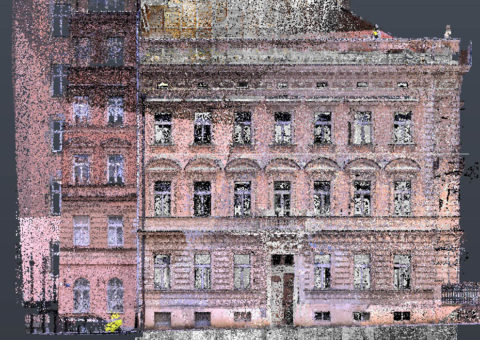

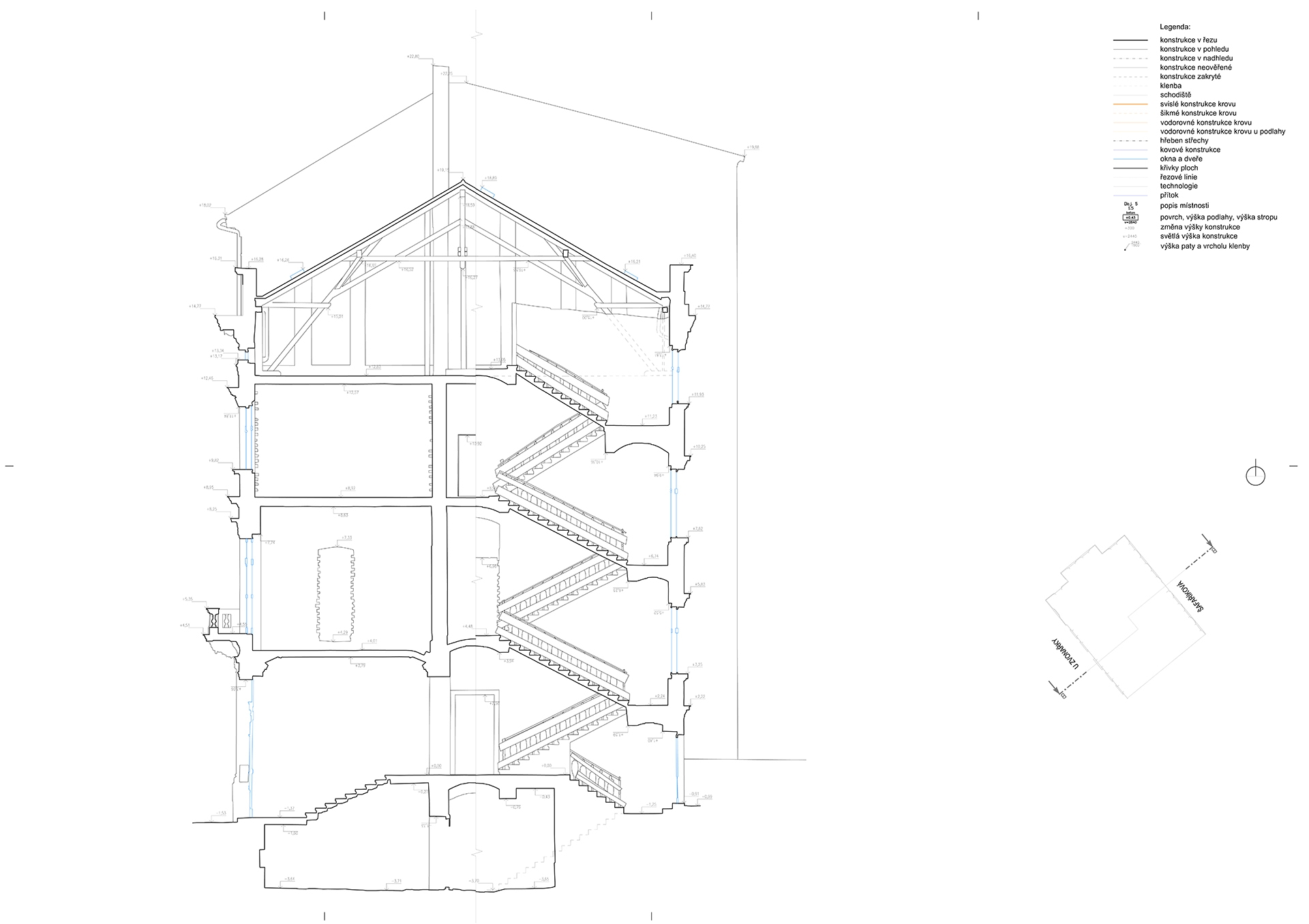

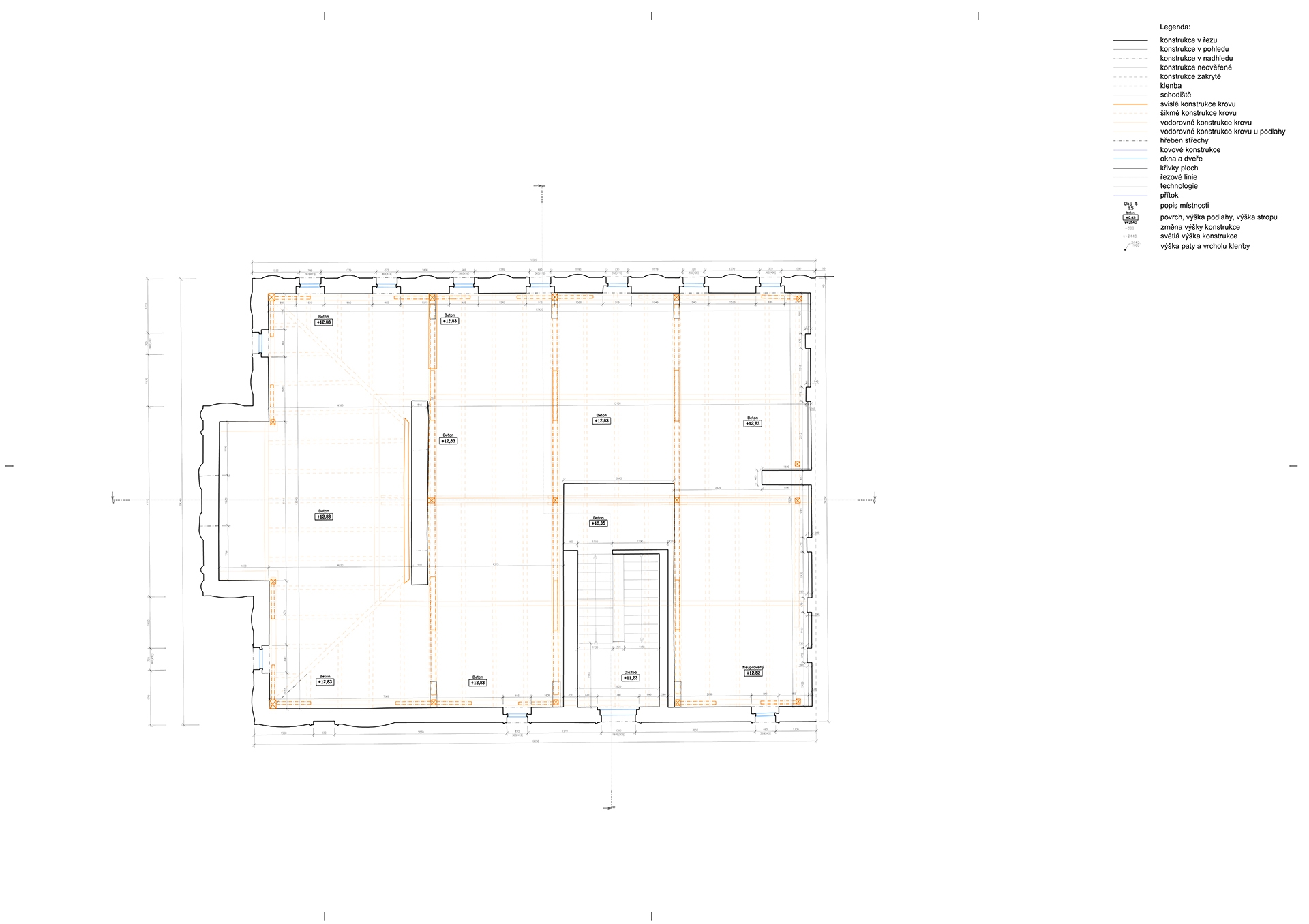

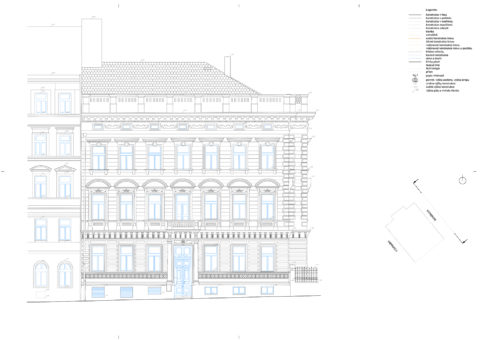

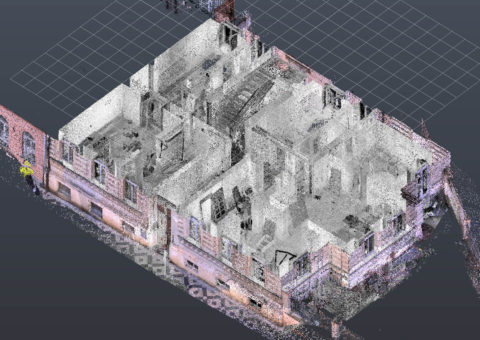

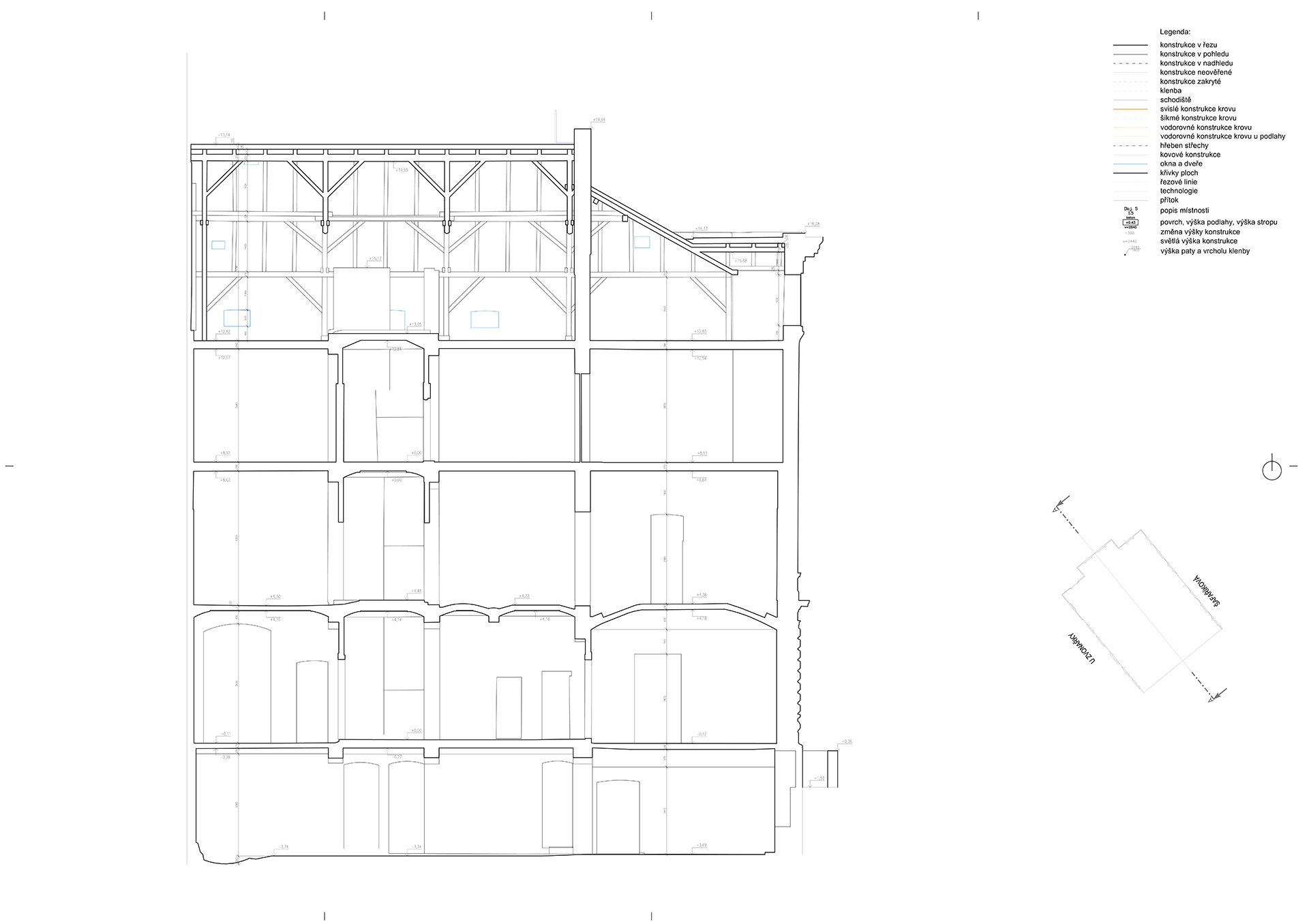

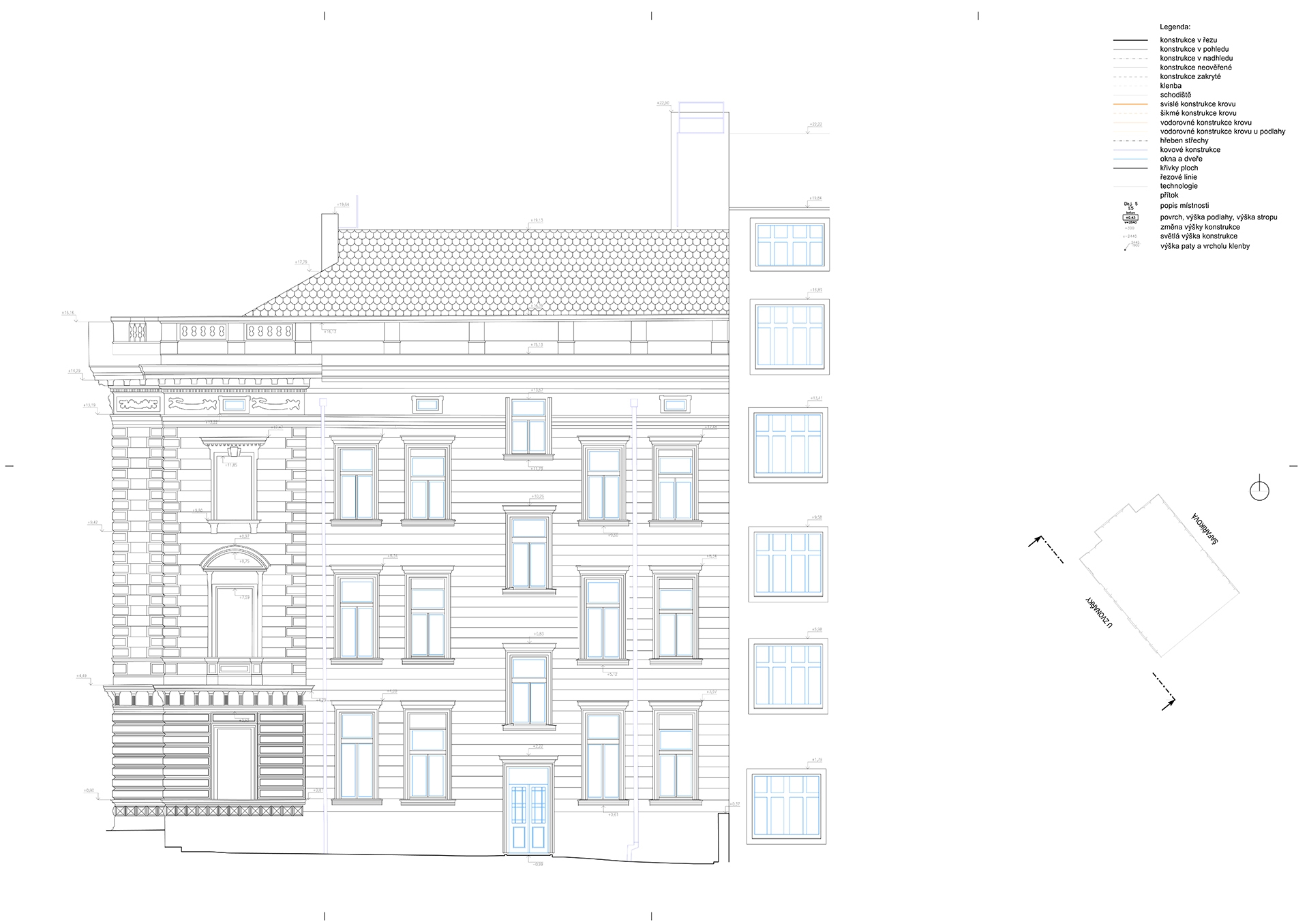

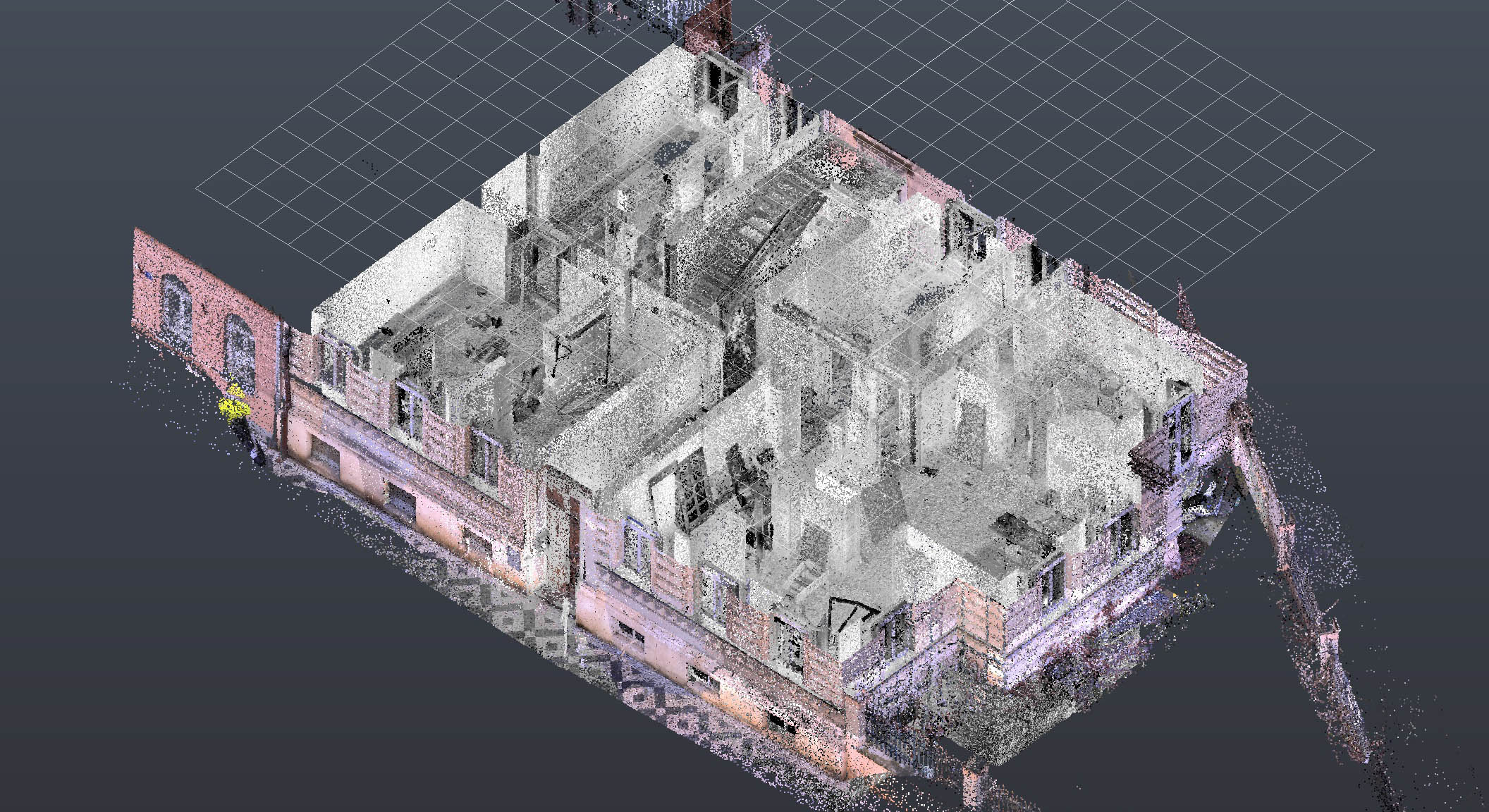

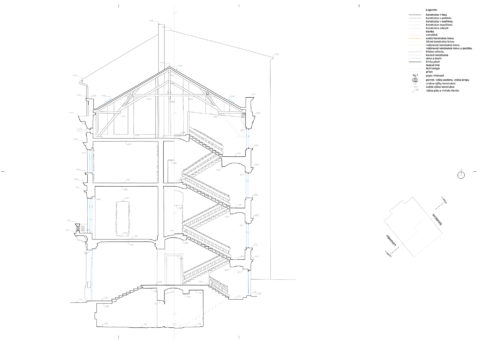

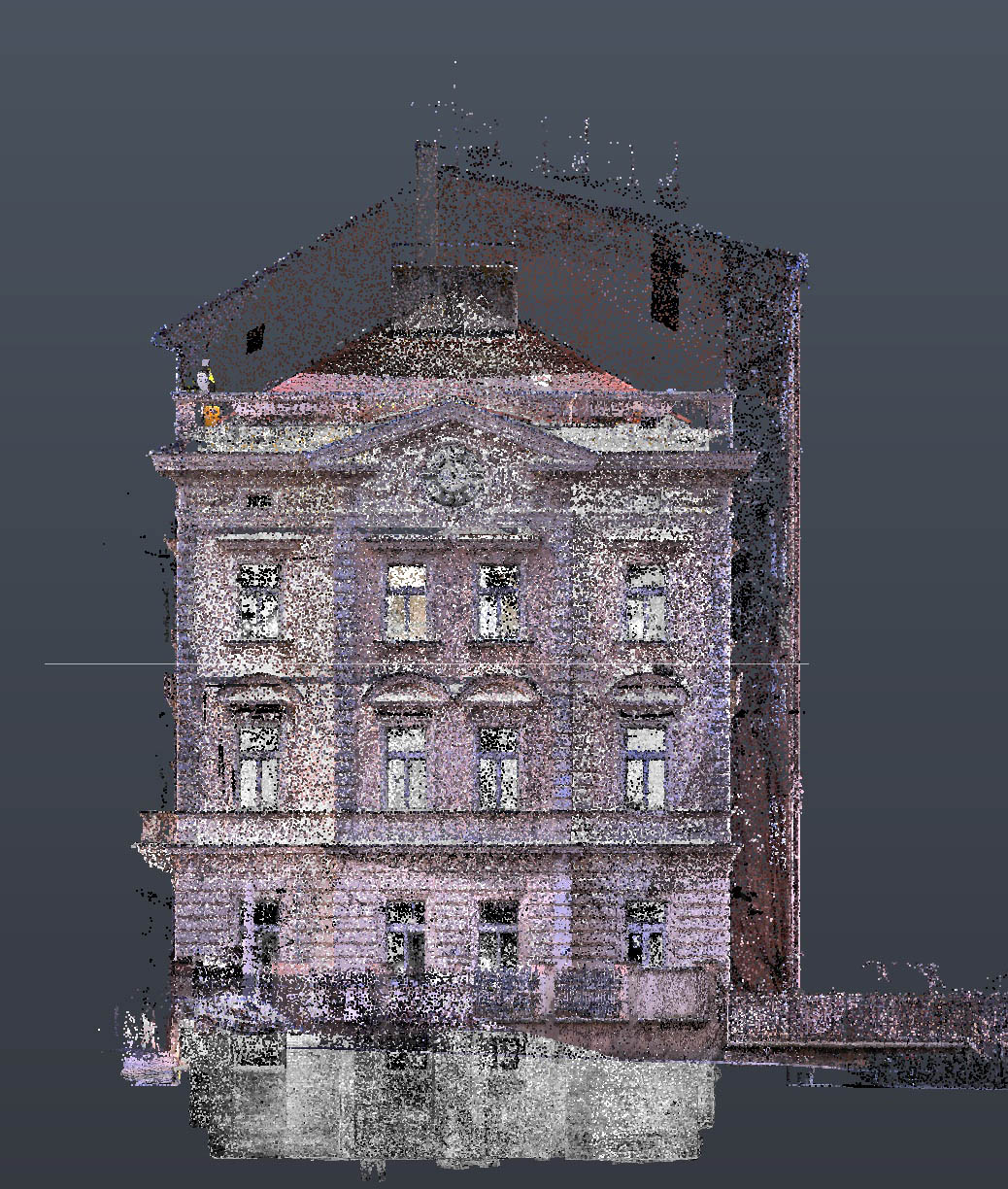

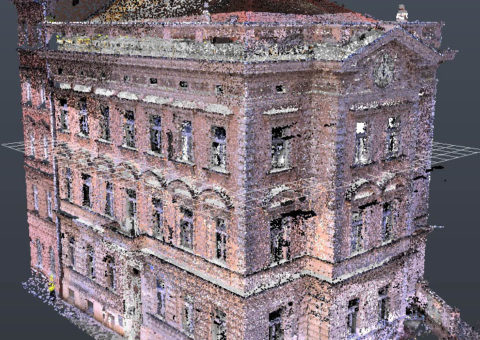

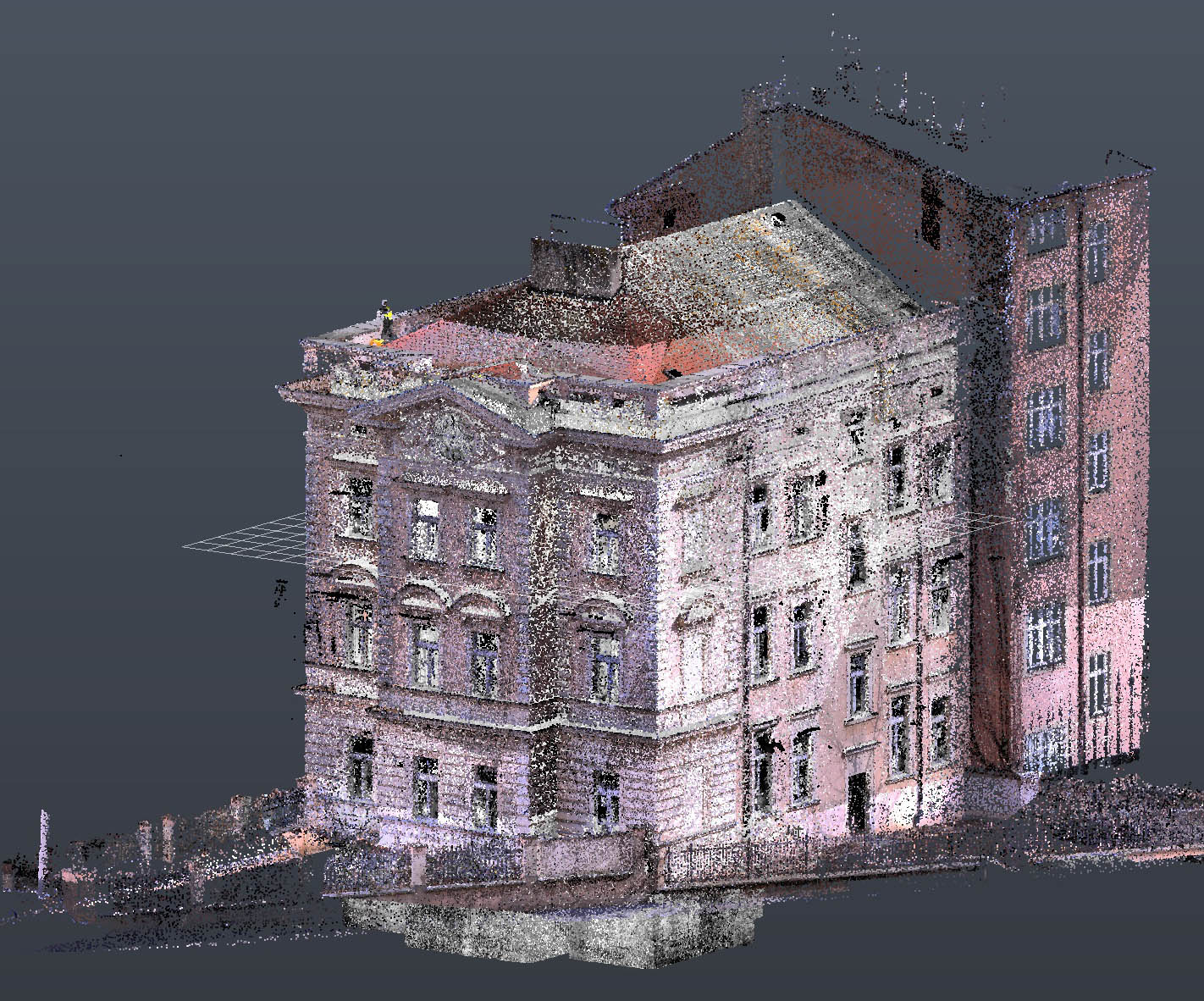

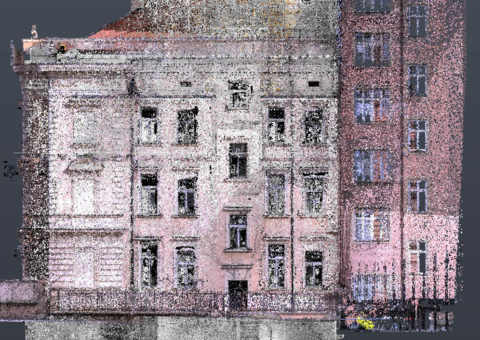

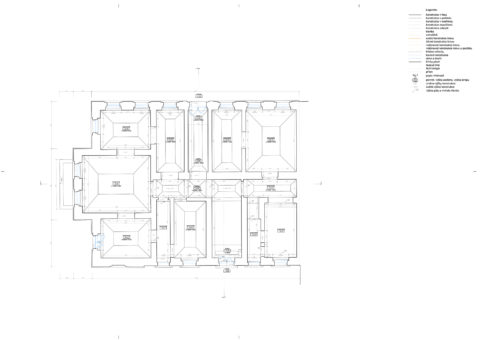

The building in Šafaříkova Street (Prague) dates back to the end of the 18th century and is under the protection of the National Heritage Institute. The building was surveyed during full operation. Surveying was done using state-of-the-art technologies and techniques, such as ground and aerial photogrammetry combined with 3D laser scanning and conventional geodetic methods. This made it possible to create a very precise 3D model in the form of a point cloud, which was used to process complete construction documentation containing sections, floor plans and facade views.
